Haswing Osapian W20 20lbs Electric Outboard Motor 360W 12V Black

Osapian W20 20lbs Electric Outboard Motor 360W 12V Black - Haswing

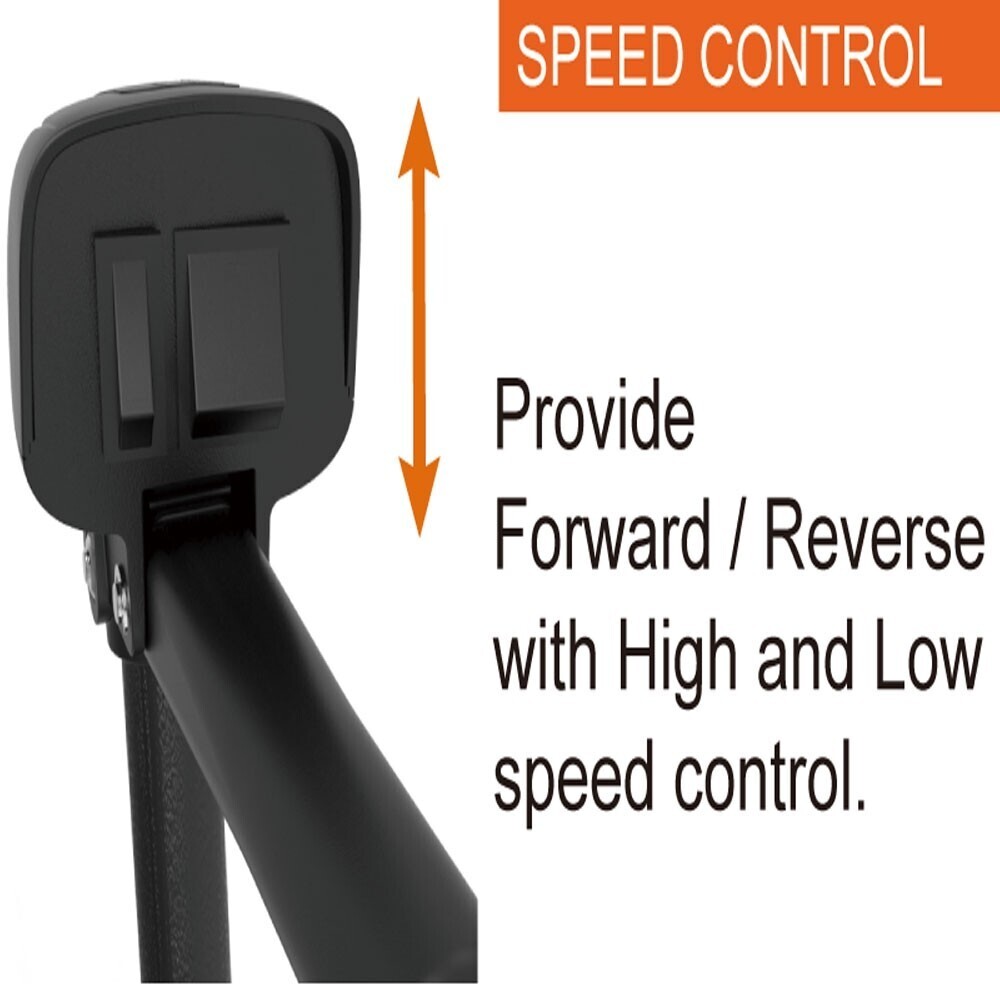

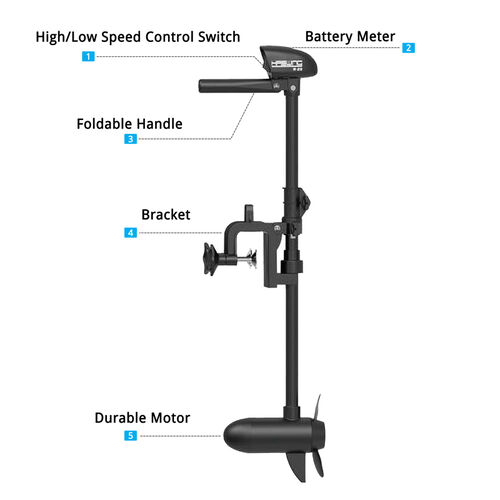

The W20 range features durable 12 volt motor and available in 20Lbs models. W20 motor are equipped with 2 forward and 2 reverse positions. W20 model are light-weight (from 2.3kg), easily portable and very compact thanks to the collapsible steering lever.

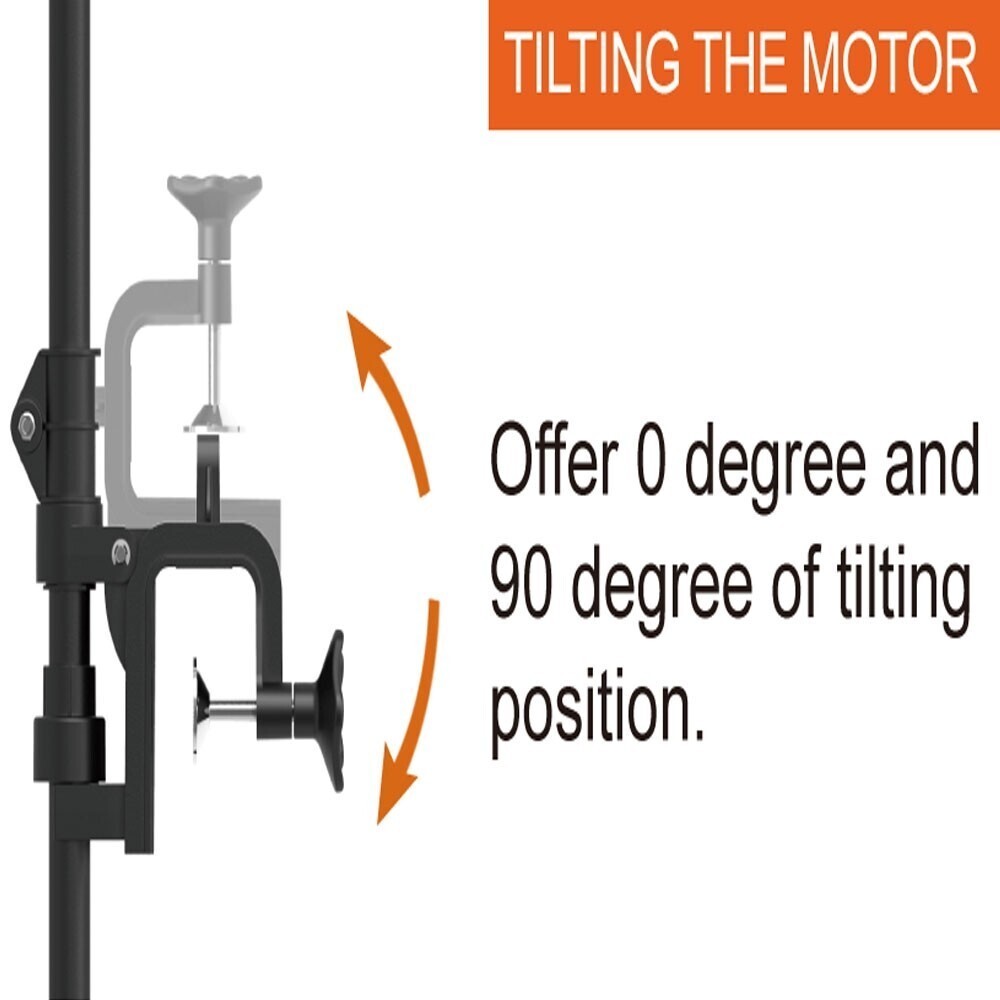

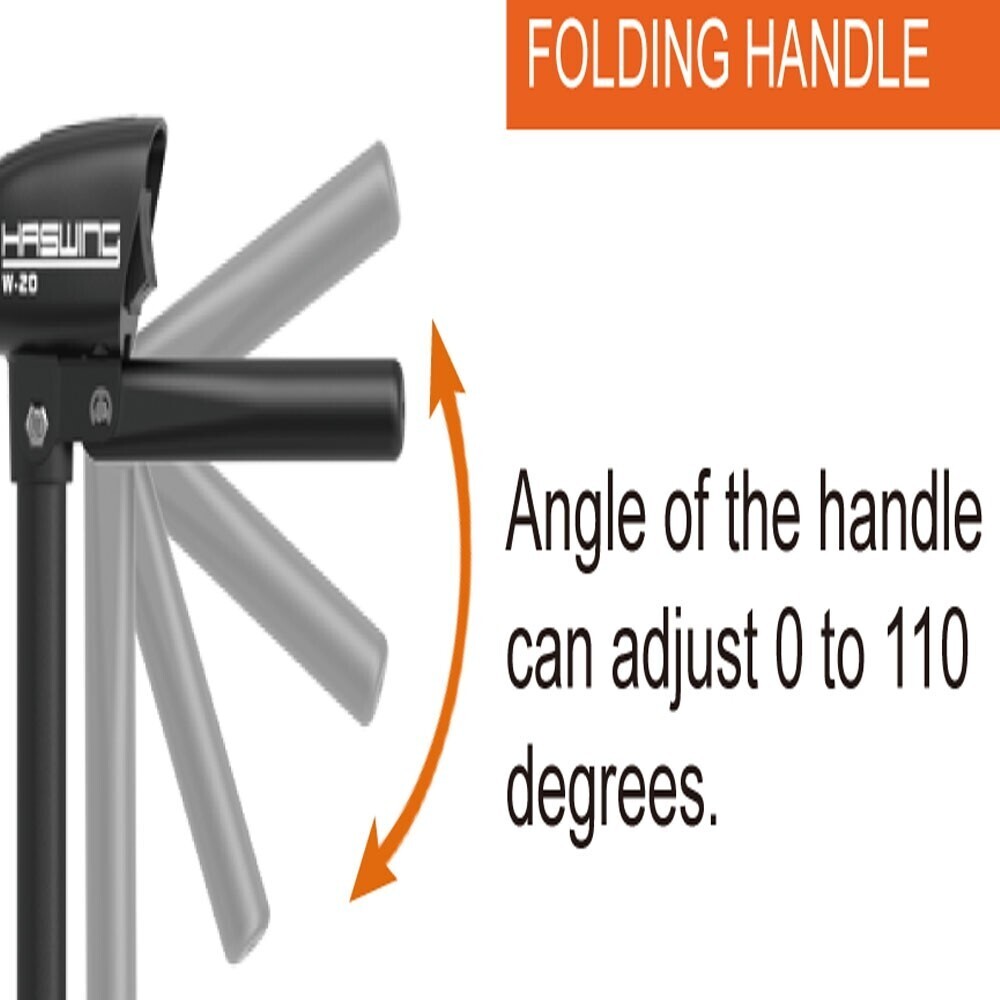

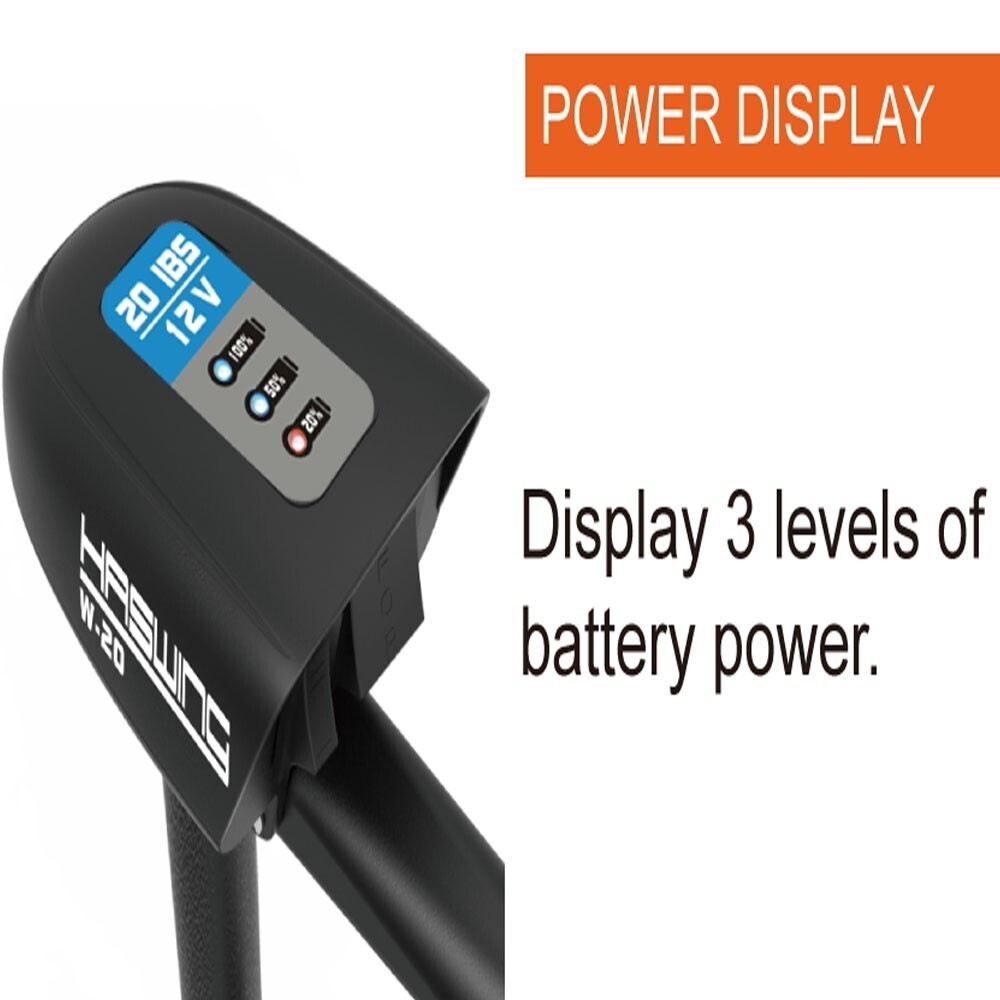

The depth height can easily be adjusted, so you can motor in virtually any water. The steering lever adjusts to different angles. The W20 model also features an LED battery level indicator. Suitable for both salt and fresh water.

SPECIFICATION

Which motor should I get for my kayak?
When choosing a motor there are a few things you need to think about:
Budget - Budget is the biggest factor when choosing a motor as you need to think about the battery and mounting kit as well.
Battery charge - The bigger motors require more charge and therefore need a larger battery.
Size of your kayak - The smaller the kayak the less poundage you will need in your motor.
Please check the below chart for the motor recommendations per kayak.

Which battery do you recommend?
Which battery we would recommend would depend on the size of your motor. As the motor gets bigger you will need a bigger battery. Please check the chart below for average run times for the batteries.

Do I need a license?
Please check local laws for up to date advice for running a motor on a kayak.
VIC: https://transportsafety.vic.gov.au/maritime-safety/newsroom/exemption-for-low-powered-kayaks-and-canoes-now-permanent
NSW: https://www.rms.nsw.gov.au/maritime/safety-rules/index.html
QLD: https://www.msq.qld.gov.au/Registration
NT: https://nt.gov.au/marine/marine-safety/safety-guides-and-equipment/safety-guide-recreational-boating
WA: https://www.transport.wa.gov.au/imarine/paddle-craft.asp
TAS: https://mast.tas.gov.au/safe-boating/paddle-craft-paddle-safe/
SA: https://www.sa.gov.au/topics/boating-and-marine/boat-and-marine-safety/boating-safely/kayaking-and-canoeing

Do I need to do any maintenance on my motor?
Yes, maintenance is required after every use to keep the motor running well & eligible for warranty claim.

• At the end of the day, wipe the motor down with a damp cloth.
• Never leave the motor submerged in salt water when the boat is moored. Always check the propeller is clear of line or weed. Clean behind the propeller after every use. Check for fishing lines, weeds, or other debris. Any debris wrapped around the prop will cause a loss in power.
• Regularly check all nuts, bolts, and screws and physically check all hardware is tightened securely.
• Lubricate all moving parts.
• Clean terminal connections regularly and check for frayed wires, loose or corroded connections. Clean terminals with a wire brush and replace any frayed wires.
• Lack of maintenance may cause excessive heat and loss of power.
• Be sure to choose a well ventilated and dry location when storing the motor for long periods.
• Never leave the motor outside, as this may cause damage to the magnet of the driving unit.
• Please ensure that the motor is thoroughly rise with fresh water after every use in salt water. Only rise the areas that have been in contact with salt water, avoid getting the top cover wet as this may damage the circuitry inside and is not covered under warranty. Please note even a small amount of salt left will rust the motor over time and is also not covered under warranty.
• We recommend using a product such as Salt Attack to ensure that no rust forms.
  • Salt Attack can be found here: https://k2f.com.au/s/ckP

What is the OWE pressure?
The OWE pressure is the current battery charge level.

Which motor mount should I use?
For our Kayaks2Fish kayaks we have a range of motor mounting accessories.
Found here: https://k2f.com.au/s/ckQ

Can I use a motor with a set of outriggers?

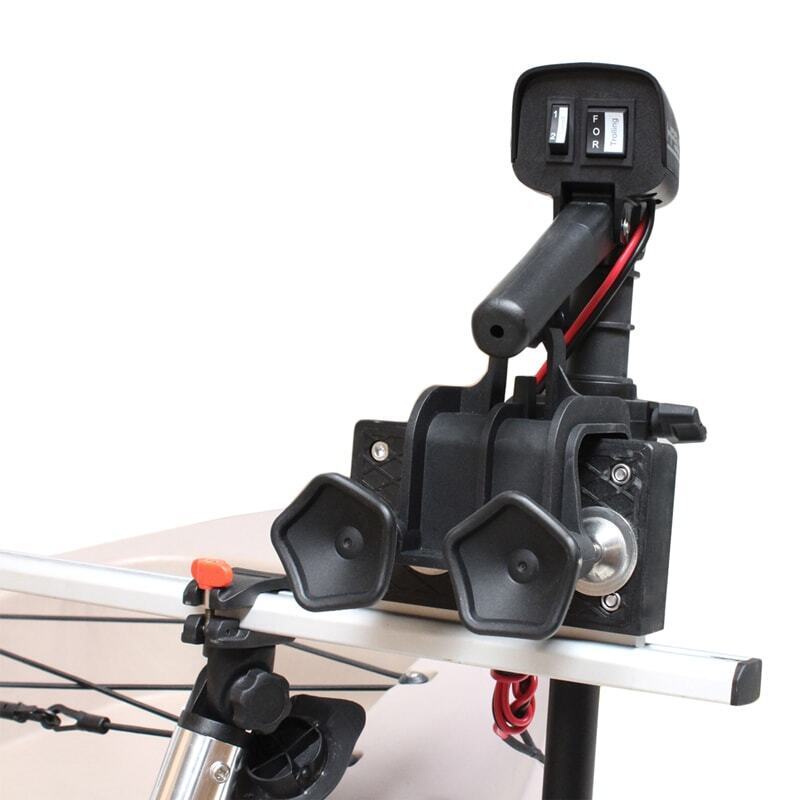

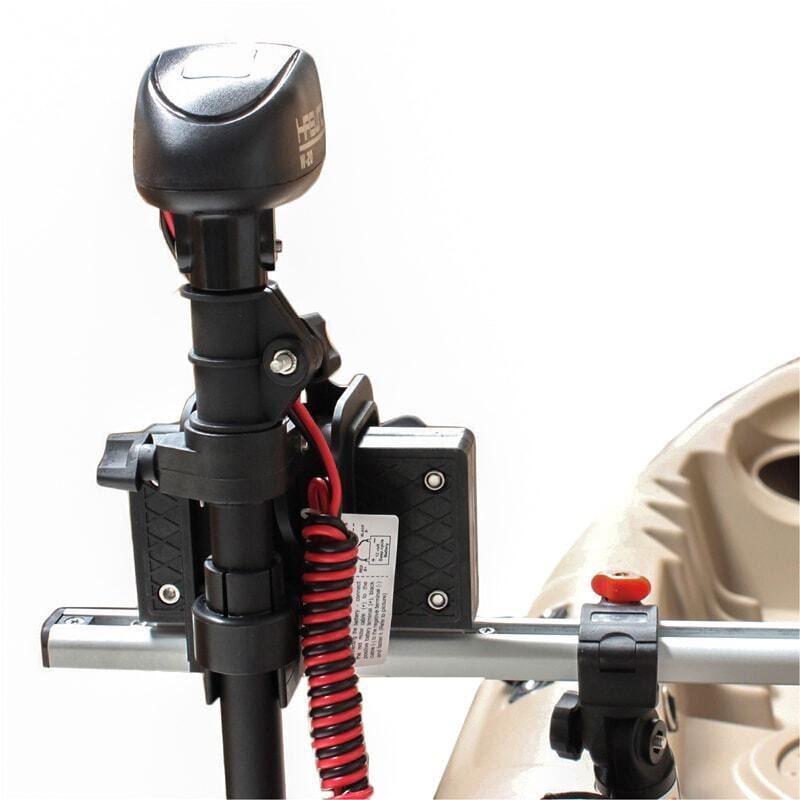

You are able to mount a motor onto a set of outriggers using a motor mounting block.
The motor mounting block is installed by bolting a nylon block directly onto the outrigger bars giving a transom mount motor somewhere to grab onto.
They can be found here: https://k2f.com.au/s/ckV

How fast do they go?
Typically a trolling motor will get you around 4-5 km/h.
This of course will depend on the poundage of motor and water conditions.

How do I mount a trolling motor onto a motor bar?
We have a great video on how to install the motor bar here: https://k2f.com.au/s/ckS

Can the motor go forward and backwards?
Yes, our trolling motors have both forward and reverse gears.

Can the battery be charged by a solar panel?
It does depend on the battery but with a special charge controller it can be charged with a solar panel.

Can I mount the motor where the pedals go?
For the NextGen 11 and 11.5 We have designed a motor mount to fit in and replace the pedals.
It can be found here: https://k2f.com.au/s/ckT

Can I mount two motors, one on each side of the kayak?
While it is possible to run two motors at once we do not recommend this as it is no more efficient and a DIY bracket would need to be made.

Can the hand controller be extended?
In the Haswing and K2F models the tiller can be extended.

Can I power the motor and fish finder from the same battery?
You can power a motor and a fish finder from the same battery; you will just need to install a regulator between the battery and fish finder.
